Manufacturing Wiring Harnesses: Quality Testing

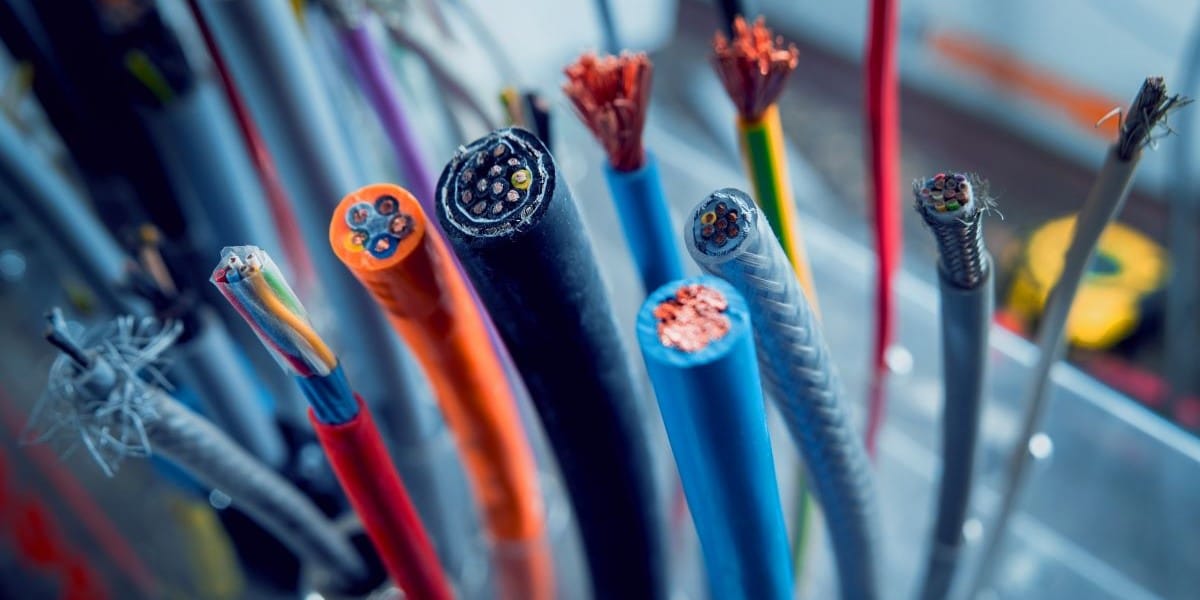

Testing manufacturing wiring harnesses is crucial to ensure their quality, reliability, and safety. Wiring harnesses are used to organize and bundle wires and cables that transmit electrical signals within various devices, vehicles, or equipment. Proper testing helps identify any faults or defects that might lead to malfunctions, shorts, or other issues. Here’s a general process for testing manufacturing wiring harnesses:
- Visual Inspection: Start with a thorough visual inspection to check for any visible defects, such as loose connections, damaged insulation, or improper crimping. Look for any wires that might be improperly routed or twisted.
- Continuity Testing: Continuity testing ensures that there are no open circuits (broken wires) or shorts (unintended connections). Use a multimeter to measure the resistance between different points on the harness. A low resistance indicates continuity, while a high resistance or an open circuit indicates a problem.
- Insulation Resistance Testing: Insulation resistance testing ensures that there is sufficient insulation between conductors. Apply a high-voltage DC test voltage between the wires and the harness’s shielding or other exposed metal parts. Measure the leakage current, which should be minimal.
- Dielectric Voltage Withstand Test (Hi-Pot Test): This test checks the insulation’s ability to withstand high voltages. Apply a higher-than-normal voltage to the harness briefly while monitoring for any breakdown or arcing.
- Connector and Terminal Testing: Check the connectors and terminals for proper crimping and secure connections. Use a pull test or torque test to ensure they are firmly attached.
- Short-Circuit Testing: Intentionally create short circuits between different conductors to ensure the harness’s design can handle such situations without causing damage or hazards.
- Resistance and Voltage Drop Testing: Measure the resistance along the length of the wires to check for any significant variations. Also, test for voltage drop under load to ensure the harness can handle the intended current without excessive voltage loss.
- Environmental Testing: Subject the harness to various environmental conditions, such as temperature variations, humidity, vibration, and mechanical stress. This simulates real-world operating conditions and helps identify weak points in the harness’s design.
- Functional Testing: If possible, connect the harness to the system it will use and perform functional tests to ensure that all components and connections work as intended.
- Documentation and Record Keeping: Maintain detailed records of the testing process, including test results, procedures, and any issues found. This documentation is valuable for quality control and traceability.
It’s important to note that the specific testing methods and standards might vary based on the industry, regulations, and the application of the wiring harness. To ensure compliance and safety, always refer to relevant industry standards and guidelines, such as those from organizations like the International Electrotechnical Commission (IEC) or the Society of Automotive Engineers (SAE). Additionally, having skilled technicians and proper testing equipment is crucial for accurate and effective testing.
