Wire and cable assemblies are crucial components in various electrical and electronic systems. They consist of wires or cables that are connected to one another or other components using connectors and terminations. These connectors and termination methods are selected based on factors like the application, environment, and electrical requirements. Here are some common connectors and terminations used in wire and cable assemblies:

  1. Crimp Connectors:
    • Insulated Terminals: These connectors have a metal barrel crimped onto the wire, providing electrical connection and insulation.
    • Uninsulated Terminals: Similar to insulated terminals but without insulation, these are used when insulation is not required.
  2. Soldered Connections:
    • Soldering: Wires are joined by melting solder (a low-melting-point alloy) and allowing it to cool, forming a secure and reliable connection for electricity.
    • Solder Sleeves: Heat-shrinkable tubes filled with solder; when heated, they melt and create a soldered connection.
  3. Screw Terminals:
    • Terminal Blocks: Metal blocks with screws that clamp down on wire ends to create secure connections.
    • Binding Posts: Used in test equipment and speaker systems, binding posts allow for easy connection and disconnection of wires.
  4. Wire Nuts and Connectors:
    • Wire Nuts: Screw-on connectors with a wire-holding mechanism to join multiple wires.
    • Push-In Connectors: These connectors allow wires to be inserted and secured into a connector block.
  5. Cable Lugs and Splices:
    • Cable Lugs: Metal connectors attached to the end of a cable or wire for bolting or soldering to electrical equipment.
    • Splices: Used to join two wires or cables end-to-end.
  6. Coaxial Connectors:
    • BNC, SMA, N-Type: Commonly used in RF and video applications, coaxial connectors have a central conductor and an outer shielding conductor.
  7. D-sub Connectors: These connectors have multiple pins arranged in a D-shaped metal or plastic shell. They are often used in computer and industrial applications.
  8. RJ45 Connectors: Commonly used for Ethernet and networking, RJ45 connectors have eight pins and are often terminated with Cat5e or Cat6 cables.
  9. Circular Connectors: Typically used in harsh environments, circular connectors provide secure connections and can have multiple pins or contacts.
  10. Fiber Optic Connectors:
    • SC, LC, ST, MTP/MPO: Used for high-speed data transmission through optical fibers, these connectors are designed to minimize signal loss.

Termination Methods:

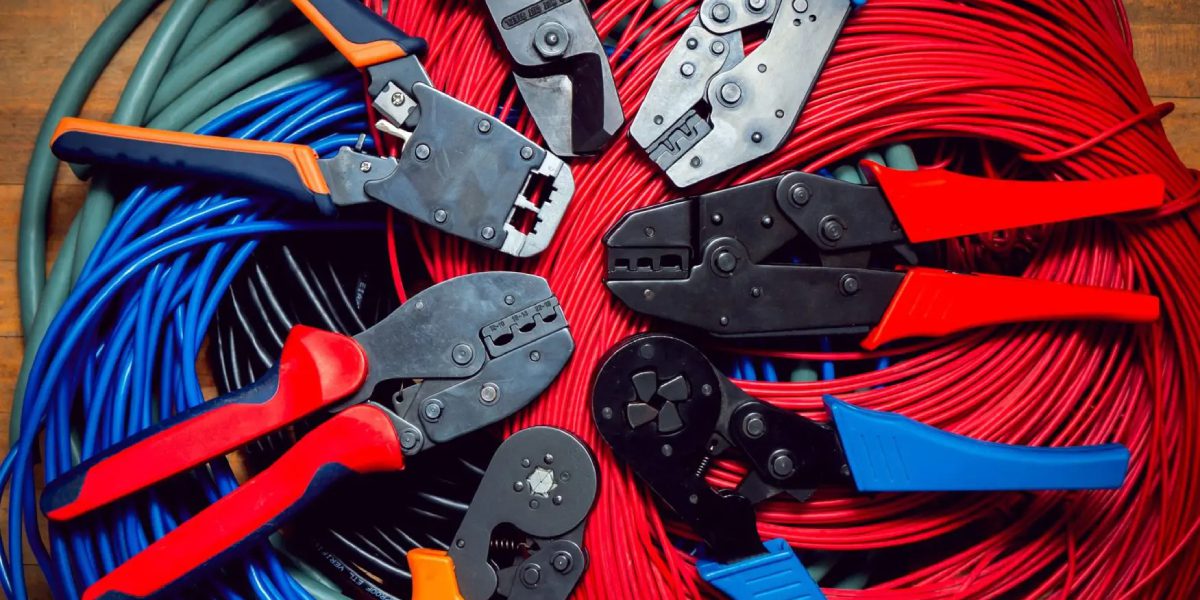

  • Crimping: Compressing a metal sleeve around the wire using a crimp tool to create a secure connection.
  • Soldering: Melting solder to join wire ends or attach components.
  • Heat Shrink Tubing: Used to insulate and protect wire connections, especially when soldering or using solder sleeves.
  • Ultrasonic Welding: Uses high-frequency vibrations to join wires without heat.
  • Compression: Applying pressure to create a secure connection, commonly used in high-voltage applications.

The connector and termination method choice depends on factors such as the electrical properties required, environmental conditions (e.g., moisture, temperature, vibration), ease of assembly, and industry standards. Proper selection and installation of connectors and terminations are critical to ensure reliable and safe electrical connections in wire and cable assemblies.
