Cold solder joints are a common issue in electronics manufacturing and repair. They occur when the solder joint doesn’t properly bond with the components or the printed circuit board (PCB), resulting in a weak and unreliable connection. Here are the causes and effects of cold solder joints:

Causes of Cold Solder Joints:

  1. Insufficient Heat: When soldering, reaching the proper temperature to melt the solder effectively. If the heat source (soldering iron) is too cold or not applied sufficiently, the solder may not fully liquefy, leading to a cold solder joint.
  2. Contaminated Surfaces: Dirty or oxidized surfaces on the components or PCB can prevent the solder from adhering correctly. Solder requires clean and properly prepared surfaces to form a strong bond.
  3. Poor Flux Application: Flux is used to clean and prepare the surfaces for soldering. If the flux is inadequately applied or unused, it can lead to cold solder joints.
  4. Incorrect Solder Alloy: Using the wrong solder alloy or one with impurities can result in cold solder joints. Different applications require specific solder alloys; using the wrong one may not produce a reliable connection.

Effects of Cold Solder Joints:

  1. Electrical Issues: Cold solder joints can lead to intermittent or complete electrical failures. The weak connection can result in signal loss, erratic behavior, or a complete lack of functionality in electronic devices.

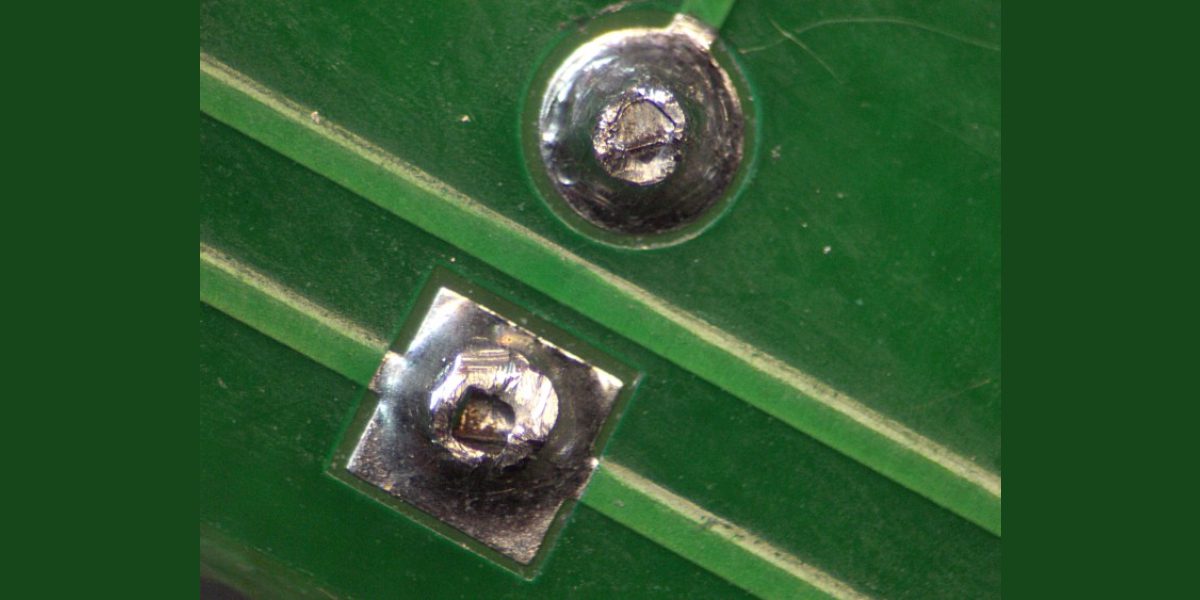

  2. Mechanical Weakness: Cold solder joints are also mechanically weak. They can break or crack easily under stress or vibration, causing components to disconnect (see image below) from the PCB or come loose.
  3. Overheating: Poor solder connections can increase resistance, causing excessive heat at the joint. This can damage components, weaken the solder joint, and even pose a fire hazard.
  4. Reduced Lifespan: Poor solder joints can shorten the lifespan of electronic devices. The unreliable connections can deteriorate over time, causing the device to fail prematurely.
  5. Debugging Challenges: Identifying and troubleshooting issues caused by these inadequate solder joints can be challenging. Since the problem may be intermittent, it can be difficult to pinpoint the exact source of the problem.

To prevent these issues, it’s essential to follow best practices for soldering, including using the correct temperature, clean and properly prepared surfaces, and appropriate solder alloys. Regular inspection and testing can also help detect and address cold solder joints before they lead to severe problems in electronic devices.
