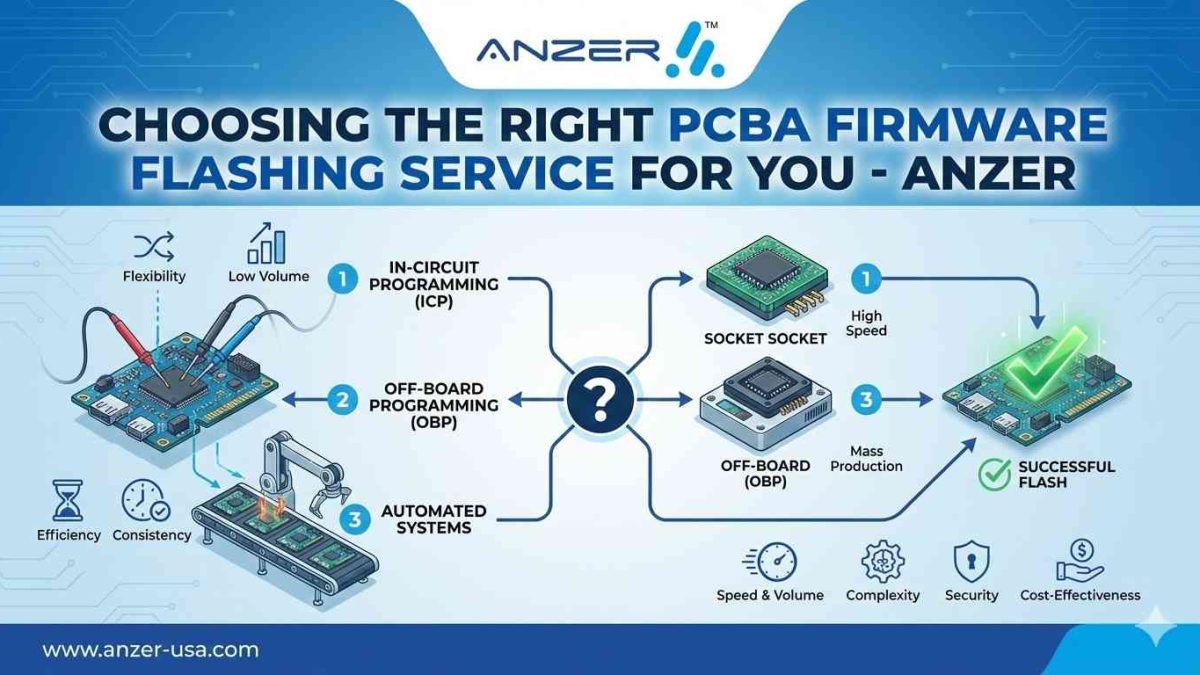

Choosing the Right PCBA Firmware Flashing Service for You – Anzer
Welcome to the world of electronics manufacturing! Making reliable products is not just about making the hardware. The software, called firmware, is what gives life to your electronic devices. During pcb assembly, putting this firmware into the device is called flashing. It is a key step. Knowing how to pick the right service for this job will help make sure your products work well right from the first time you turn them on. This guide will take you through all you need to know about it.
Table of Contents
Key Highlights
- Firmware flashing is the process of loading software onto a printed circuit board’s microcontroller.
- This critical step in the production process ensures your electronic devices function correctly.
- Properly flashed firmware is essential for creating durable and reliable products.
- The PCBA testing stage includes firmware validation to guarantee performance.
- Selecting a trusted partner for flashing services simplifies your supply chain.
- A well-executed flashing strategy ensures your circuit boards are ready for market right after assembly.
What Is PCBA Firmware Flashing and Its Role in PCB Assembly
PCBA firmware flashing, also known as programming, is the step where a program is moved onto a microchip on a printed circuit board. You can think of this as telling the brain of your electronic device what to do. This important step happens during the pcb assembly production process, and it is needed to make sure parts like microcontrollers work the way they are supposed to.
If you skip this, your hardware will have no commands to run. So, firmware flashing connects the hardware to the software. It also needs careful validation to make sure all electronic devices work well before they are sent out of the factory.
Definition and Process of Firmware Flashing
Flashing firmware means putting a program, called firmware, into a small chip. This chip, which is known as a microcontroller, handles the main work inside your device. By doing the flashing process, you make sure the chip has the software it needs to work with the hardware. You can do this before the parts are placed onto the board, or after the board is all put together.
If you flash the firmware after you build the board, you will often use simple ways to connect, like SPI, UART, or JTAG. A tool used for programming connects right to a certain spot on your pcba. This lets you put the firmware straight onto the finished pcba.
This way of flashing is good for many uses. You can do it when trying out early prototypes or when you want to make a lot of products. Whether you are testing an idea or making many units, it is this flashing process that lets your hardware work and gets it ready for people to use.
Importance of Firmware Flashing in Device Performance
The way you flash your firmware has a big effect on how well the device will work. When you load the firmware the right way, all the parts on the board talk to each other and do what they should. This makes your products more strong and gives you reliable products. It helps make sure there are no big problems later, like expensive returns or things breaking.
When you handle the flashing process well, it is easy to give your devices regular updates. Today, many devices can get new firmware even after they are put together or sold. This is done with in-system programming. It lets you fix bugs, add new things, and give better performance during the time the product is being used.
If you put money into a good flashing service, you get peace of mind. You know your products are strong, tested, and will work well for your customers. This gives you one less thing to worry about.
Key Criteria for Selecting a Reliable PCBA Firmware Flashing Service
Choosing the right partner for your PCBA firmware flashing is very important. It matters as much as the process of flashing itself. You need a trusted partner who will meet your needs with good precision. Many times, these services come as a part of other pcb assembly services, so it helps to look at all the work a provider can do.
To help make your choice, use a simple checklist. Check their technical expertise in pcb assembly and see what programming tools they use. Make sure they can handle your project’s size. For example, does the provider have the adapter or fixture needed for your integrated circuits? Here are the main things you should look at to get the right fit.
Essential Factors to Evaluate Service Providers
When you need a service provider, the most important things are that the team is reliable and does the job with precision. Find a partner with proven experience in high-quality PCB assembly. This company should know how to handle firmware flashing the right way. Choose a group that gives you an end-to-end solution and does everything. They should get the parts, do the work, and test the final product.
You should pay attention to their skills and their certifications. A provider in North America with an in-house team can help your supply chain move faster. This way, the process is less complicated. The main things to look for are:
- Certifications: See if they have certifications like ISO 9001, AS9100, or IPC-A-610. These show they care about quality.
- Technology: Find out which programming tools and platforms they use. Good equipment means your project will be built with precision.
- Experience: Make sure they have done projects in your field, such as aerospace, medical, or consumer electronics.
- Scalability: Check if the team can do different project sizes, from small PCB tests to big runs.
By looking at these factors, you can get a partner who does the job right every time. This will help you be sure your products meet top standards in PCB assembly and firmware flashing.
Questions to Ask Before Making Your Choice
Before you choose a provider, asking the right questions is a critical step. Talking with them at the start will help you see how they work. You will know if they fit your project. Make a checklist of questions so you do not miss anything. This way, you can make a smart choice.
Doing this makes you feel comfortable and at peace with your choice. It gives a strong start to a good partnership. In the end, you get reliable products that you can trust. Some of the questions you should ask are:
- What is your process for firmware validation and testing?
- How do you handle firmware updates or revisions during and after production?
- Can you provide documentation like a first article inspection (FAI) report?
- What are your typical turnaround times for projects of my scale?
The answers to these questions will show you how much the provider cares about quality, good service, and customer happiness.
Step-By-Step Breakdown of Professional PCBA Firmware Flashing
Professional firmware flashing follows a clear process. It helps to keep things accurate and the same from the first PCB to the last one. The process is part of the whole pcb assembly workflow. This is true whether you are making just a few prototypes or doing mass production. It starts with good planning. Then, it goes through a few steps for flashing and validation.
Each step helps to find problems early. This means most big problems can be stopped before they happen. This way of doing things has many pcba testing checkpoints. These help to make sure the end product meets all the things it needs to have. Now, let’s look at the normal steps used in flashing, validation, and pcb assembly.
Standard Procedures and Best Practices
A professional firmware flashing service follows a set of best practices to ensure quality. The process begins long before the fabrication of the boards, with a consultation to understand your firmware requirements. Once the design is approved, the service moves into loading, verification, and testing.
Many providers use a combination of automated and manual inspections, including automated optical inspection (AOI), to check for physical defects. After assembly, the firmware is loaded and put through a rigorous validation process. Here’s a look at the typical verification steps:
| Verification Step | What It Entails |
|---|---|
| Flash Programming & Validation | The firmware is written to the chip’s memory, and its integrity is confirmed to prevent boot failures. |
| Basic Connectivity Check | Verifies that the PCB can communicate with essential components and that power is stable. |
| Functional Validation | Core features are tested to ensure the firmware performs its intended functions correctly. |
| Stress & Edge-Case Testing | The firmware is pushed to its limits with extreme conditions to uncover hidden bugs. |
| Log Analysis & Reporting | Test logs are reviewed for errors and anomalies, and all findings are documented. |
Finally, some boards may receive a conformal coating for protection before they are shipped. This entire process ensures every board is ready for action.
Typical Timelines and Turnaround Expectations
The time needed for PCBA firmware flashing depends on how hard and big the project is. For simple prototypes, you can get it done very fast. It can take only a few days. This helps you test and check your designs quickly before you decide to move to the next step.
If you are looking to start mass production, the production process needs more steps. But if you have a smooth workflow, you can cut down on long waits. A good partner will get all the needed materials right away after the first piece is approved. This will help move things fast and get your work done quicker with less waiting around.
The main aim is to get reliable products to you as soon as possible. If your partner has ways to grow and work better, you can get both small and big orders fast. This will help you stay ahead in the game, whether you are making one or many items.
Frequently Asked Questions
Can firmware be updated after the PCBA assembly process?
Yes, you can update the firmware after the PCBA is put together. You do not need to take the board apart to do this. Using something called In-System Programming (ISP), updates can be put onto the board right during the production process. This is very helpful if you need last-minute changes. It also lets you keep giving regular updates when the product is already in use. This gives you real peace of mind as you know the product will stay up-to-date.
What industries benefit most from PCBA firmware flashing services?
Almost every industry that uses smart electronics gets help from these services. Some main areas are aerospace, automotive, and medical, where you must have things work right every time. The IoT area is growing fast now, and it needs firmware flashing for devices that use sensors, Bluetooth, and other smart features. All of these things need good PCB assembly.
Are there budget-friendly options for large-scale firmware flashing projects?
Yes, you can find budget-friendly ways for mass production. Prototypes might cost more for each unit, but it gets cheaper when you make more. If you use standard programming interfaces like USB or a common adapter, you also save money. This is because you don’t need to spend on special or custom fixtures for each project.
Conclusion
Picking the right PCBA firmware flashing service is important if you want to get the best out of your device. When you know what firmware flashing is and why it matters, it helps you make a good choice. You should look at a few key things before picking a company to work with. Make sure to ask questions to find out if they fit your needs. With the right support and help, the process of firmware flashing can be much easier. If you want to upgrade your pcb assembly projects, reach out to us now. We can talk about how we can help you with your firmware needs.
