Wiring Harness vs Cable Assembly: Which Do You Need?
TL;DR: Wire harnesses bundle multiple insulated wires together with tie wraps or sleeves – lightweight, cost-effective, and ideal for protected enclosures. Cable assemblies add an outer sheath over the wire bundle – providing superior environmental protection but at higher cost and weight. Choose wire harnesses for internal applications (computers, medical equipment, control systems) where enclosures protect wiring. Choose cable assemblies for outdoor, industrial, or harsh environments requiring moisture, abrasion, and temperature protection. Cost difference: cable assemblies typically run 30-50% more than equivalent wire harnesses. Both require IPC-A-620 certification for aerospace and medical manufacturing.
A customer calls asking for a quote on “wire harness assemblies.” You ask clarifying questions and discover they actually need cable assemblies for an outdoor industrial application. The terminology confusion is understandable – the terms are used interchangeably in conversation.
But the difference matters. Shipping wire harnesses for an outdoor application means premature failures. Overspecifying cable assemblies for a protected enclosure wastes money.
I’m Jay Mendpara, CEO of Anzer USA and an IPC-certified trainer with over 20 years overseeing manufacturing operations for wire and cable interconnect products. Part of our role is helping customers understand which solution fits their application – not just what they think they need, but what will actually work reliably in their operating environment.
This guide explains the real differences between wire harnesses and cable assemblies, when each applies, and how to make the right choice for your product.
Table of Contents

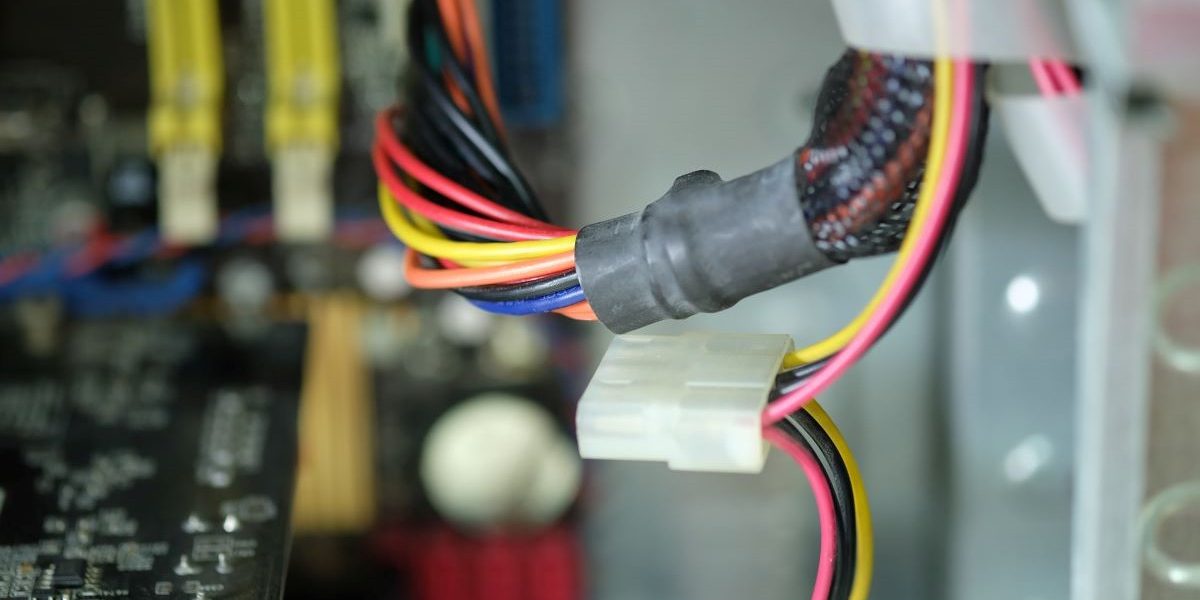

What Is a Wire Harness?
A wire harness is an organized bundle of multiple insulated wires bound together using tie wraps, tape, sleeves, or conduit – with each individual wire remaining separately accessible for routing and termination. The wires themselves have basic insulation (PVC, rubber, thermoplastic) but no additional outer protective sheath around the entire bundle.
Think of a wire harness as an electrical organizing system. Individual wires route through the harness to their termination points. If one wire needs replacement or modification, you can remove just that wire without disturbing the others.
Key characteristics:
- Individual wires with basic insulation
- Bound together with external wrapping (tape, sleeves, tie wraps)
- Lightweight and flexible
- Lower cost than cable assemblies
- Each wire can be individually accessed or removed
- Requires protected environment (inside enclosures)
Common applications:
- Internal wiring in computers and electronics
- Medical equipment internal interconnects
- Automation control systems
- Teller machines and kiosks
- Aerospace avionics internal routing
- Automotive dashboard and cabin wiring
At Anzer’s wire harness manufacturing, we build wire harnesses ranging from simple 5-wire bundles to complex 200+ wire assemblies for aerospace applications. The key requirement: these harnesses install inside protected enclosures where environmental exposure is minimal.
What Is a Cable Assembly?
A cable assembly is a group of insulated wires bundled together inside a single continuous outer sheath or jacket that provides additional environmental protection beyond the basic wire insulation. The outer sheathing protects against moisture, abrasion, chemicals, temperature extremes, and mechanical stress.
From the outside, a cable assembly appears as a single thick cable – like the power cable on your laptop or the interconnect between computer and printer. You cannot easily remove individual wires without cutting the outer sheath.
Key characteristics:
- Multiple wires inside a continuous outer jacket
- Outer sheath provides environmental protection
- Heavier and less flexible than wire harnesses
- Higher cost (30-50% more than equivalent wire harness)
- Individual wires not easily accessible
- Survives harsh environments without additional protection
- Often uses over-molded connectors for additional sealing
Common applications:
- Outdoor equipment and sensors
- Marine and offshore installations
- Industrial floor equipment (vibration, moisture exposure)
- Military field equipment
- Automotive external sensors and lighting
- Medical equipment external cables (hospital floor environments)
Material options for outer sheath:
- PVC: General purpose, cost-effective
- Polyurethane: Abrasion and chemical resistant
- TPE (Thermoplastic Elastomer): Flexible, temperature resistant
- Rubber: High flexibility, oil resistant
- Teflon/PTFE: High temperature, chemical resistant (aerospace/medical)
The outer sheath selection depends on operating environment. A cable assembly for a marine application uses different materials than one for aerospace avionics – but both provide protection that wire harnesses cannot match.
Wire Harness vs Cable Assembly: The Critical Differences
Here’s what actually differentiates these interconnect solutions:
Environmental Protection
Wire Harness: Individual wires have basic insulation protecting against electrical shorts. No additional environmental protection. Moisture, dust, chemicals, and abrasion damage the insulation over time. Requires installation inside sealed enclosures.
Cable Assembly: Outer sheath provides multiple protection layers: moisture barrier, abrasion resistance, chemical resistance, UV protection (for outdoor use), temperature insulation. Can route through harsh environments without additional protection.
Real-World Impact: We built 500 wire harnesses for an industrial customer who installed them in outdoor junction boxes. Within 18 months, moisture ingress caused multiple failures. Cost to replace with properly specified cable assemblies: $47,000 including field service. If we’d recommended cable assemblies initially (30% cost premium = $8,500), the customer would have saved $38,500.
Size and Weight
Wire Harness: Lightweight and compact. Individual wires create minimal bulk. Easy to route through tight spaces and around obstacles.
Cable Assembly: The outer sheath adds diameter and weight. A 20-wire harness might be 0.5″ diameter bundled. The same 20 wires in a cable assembly could be 0.75-1.0″ diameter due to sheathing. Weight increases 40-60%.
When This Matters: Aerospace applications are weight-sensitive. Every ounce counts. If wiring routes inside a sealed avionics enclosure, wire harness is preferred – saves weight without sacrificing protection. But if wiring routes through unpressurized airframe areas exposed to moisture and temperature extremes, cable assembly is mandatory despite the weight penalty.
Cost
Wire Harness: Lower material cost (no outer sheath). Faster to manufacture (no extrusion or over-molding). Easier to rework or repair (individual wires accessible).
Cable Assembly: Higher material cost (outer sheath, often specialty materials). Slower to manufacture (extrusion, over-molding processes). Difficult to repair (cutting sheath damages environmental protection).
Typical Cost Difference:
- Simple wire harness (10 wires, 1 meter): $15-$25
- Equivalent cable assembly: $20-$35 (30-50% premium)
- Complex aerospace harness (100 wires, 3 meters): $400-$600
- Equivalent cable assembly: $550-$850
The premium buys environmental protection. For protected applications, it’s wasted money. For harsh environments, it’s essential insurance.
Flexibility and Routing
Wire Harness: Highly flexible. Wires can fan out at termination points. Easy to route around obstacles. Individual wires can take different paths if needed.
Cable Assembly: Less flexible due to thick outer sheath. More difficult to route through tight bends. Connectors must accommodate the full cable diameter. Cannot easily split into different routing paths.
Design Consideration: Equipment with complex internal routing (computer motherboards, medical imaging systems, automation controllers) benefits from wire harness flexibility. Equipment with straight-line routing or outdoor exposure (industrial sensors, marine electronics, outdoor lighting) benefits from cable assembly protection.
Installation and Serviceability
Wire Harness: Easier installation in complex equipment. Individual wires route separately. If one wire fails, it can be replaced without disturbing others. Modifications and additions are straightforward.
Cable Assembly: Installation is simpler for point-to-point connections (plug both ends, done). But complex routing is difficult. If one wire fails inside the sheath, entire cable often requires replacement. Modifications require cutting the sheath and resealing – labor intensive.
| Factor | Wire Harness | Cable Assembly |
|---|---|---|
| Environmental Protection | Basic (insulation only) | High (outer sheath + insulation) |
| Typical Applications | Inside enclosures, protected | Outdoor, industrial, harsh environments |
| Weight | Lightweight | 40-60% heavier |
| Flexibility | High (easy to route) | Moderate (thick sheath restricts bending) |
| Cost | Baseline | 30-50% premium |
| Installation | Complex routing possible | Best for point-to-point |
| Serviceability | Individual wires replaceable | Entire cable often replaced |
| Moisture Resistance | Low (requires sealed enclosure) | High (sheath provides barrier) |
| Abrasion Resistance | Low (insulation wears over time) | High (outer sheath protects) |
| Temperature Range | Limited by insulation | Extended (sheath provides thermal barrier) |
| IPC-A-620 Compliance | Required for aerospace/medical | Required for aerospace/medical |
| Typical Lifespan (Harsh) | 2-5 years (if exposed) | 10-20 years |
| Typical Lifespan (Protected) | 15-25 years | 15-25 years |
IPC-A-620: Quality Standards for Both
Whether you’re manufacturing wire harnesses or cable assemblies, IPC-A-620 (Requirements and Acceptance for Cable and Wire Harness Assemblies) defines the quality standards for design, assembly, and inspection.
This standard is the wire harness equivalent of IPC-A-610 (which covers PCB assembly workmanship). For aerospace and medical manufacturing, IPC-A-620 certification is typically required.
IPC-A-620 Class Requirements
Similar to PCB assembly, wire and cable assemblies have three quality classes:
Class 1 – General Electronic Products Basic functionality required. Cosmetic imperfections acceptable. Used for consumer products, prototypes, short-life applications.
Class 2 – Dedicated Service Electronic Products Moderate reliability required. Limited cosmetic defects allowed. Used for commercial equipment, computers, general industrial controls. This is the standard for most commercial wire harnesses and cable assemblies.
Class 3 – High Performance Electronic Products High reliability required. Zero cosmetic defects allowed. Used for aerospace avionics, life-support medical devices, military systems, critical infrastructure.
At Anzer’s IPC-A-620 certified operations, our technicians are trained and certified to build Class 2 and Class 3 wire harnesses and cable assemblies. The standards define acceptance criteria for:
- Wire stripping and termination
- Crimping quality and pull force
- Solder joint quality (for soldered terminations)
- Connector assembly and pin insertion
- Cable bundling and securing methods
- Labeling and marking requirements
- Inspection and testing procedures
For aerospace customers requiring Class 3 workmanship, every crimp undergoes pull testing, every solder joint gets microscopic inspection, and complete traceability documentation proves which technician assembled which harness.
Making the Right Choice: Selection Guide
Here’s how to decide between wire harness and cable assembly:
Choose Wire Harness When:
- Protected Environment: Product installs inside sealed enclosures, cabinets, or equipment housings
- Weight Sensitive: Aerospace, portable equipment, or weight-constrained applications
- Cost Critical: Budget is tight and environmental protection isn’t needed
- Complex Routing: Multiple routing paths, fan-outs, or intricate internal layouts
- Serviceability Matters: May need to replace individual wires or modify the harness
Examples:
- Computer internal wiring
- Medical equipment internal interconnects (MRI, CT scanners, imaging systems)
- Automation controller cabinets (PLC, servo drives, HMI panels)
- Aerospace avionics bay wiring (protected inside aircraft structure)
- Automotive dashboard and instrument cluster
Choose Cable Assembly When:
- Harsh Environment: Outdoor installation, moisture exposure, temperature extremes
- Abrasion Risk: Routes through areas with moving parts, vibration, or mechanical stress
- Chemical Exposure: Industrial floors with cleaning agents, oils, solvents
- Long Outdoor Runs: Sensors, antennas, remote equipment connections
- Regulatory Requirements: Some industries mandate cable assemblies for specific applications
Examples:
- Industrial sensor cables (temperature, pressure, flow sensors)
- Marine and offshore electronics
- Outdoor lighting controls
- Military field equipment
- Automotive external sensors (backup cameras, parking sensors, wheel speed sensors)
- Medical equipment external cables (patient monitoring, portable devices)
Hybrid Approach: Some products use both. Internal wiring uses wire harnesses (lightweight, cost-effective, protected by enclosure). External connections use cable assemblies (environmental protection). This optimizes cost while ensuring reliability.
Common Mistakes and How to Avoid Them
Mistake #1: Using Wire Harness in Harsh Environments The most common error. Wires with basic insulation cannot survive moisture, UV, or temperature cycling. Result: premature failures, costly field replacements.
Solution: Perform environmental analysis. If any moisture, chemicals, UV exposure, or temperature extremes exist, use cable assembly.
Mistake #2: Overspecifying Cable Assembly for Protected Applications Using cable assemblies inside sealed enclosures wastes 30-50% in cost and adds weight/bulk unnecessarily.
Solution: If wiring routes entirely inside sealed, climate-controlled enclosures, wire harness is sufficient.
Mistake #3: Ignoring Flexibility Requirements Cable assemblies are stiffer. Complex routing with multiple bends or tight turns becomes difficult.
Solution: If routing requires high flexibility, consider wire harness with external conduit protection (provides some environmental protection while maintaining flexibility).
Mistake #4: Neglecting IPC-A-620 Requirements Aerospace and medical customers require IPC-A-620 certified assembly. Using non-certified manufacturers creates qualification problems.
Solution: Verify manufacturer holds IPC-A-620 certification and employs certified technicians for your product’s required class.
The Anzer Approach: Right Solution, Right Application
At Anzer, we don’t just build what customers request – we help them specify what they actually need.
Application Analysis: We review operating environment, routing constraints, weight limitations, and cost targets. If a customer requests cable assemblies for a fully enclosed application, we recommend wire harness with cost analysis showing the savings.
IPC-A-620 Certified Quality: Our technicians hold IPC-A-620 certification for Class 2 and Class 3 assembly. Whether building wire harnesses or cable assemblies, we follow documented procedures audited under our AS9100:2016 and ISO 13485:2016 certifications.
Material Selection Expertise: We help customers select wire insulation types, outer sheath materials (for cable assemblies), connectors, and bundling methods based on application requirements – not just catalog defaults.
Testing and Documentation: Every harness and cable assembly undergoes continuity testing, insulation resistance testing, and visual inspection per IPC-A-620. For aerospace and medical applications, we provide complete traceability documentation linking materials to final products.
In 33+ years of electronic contract manufacturing (starting as Western Reserve Controls), we’ve built tens of thousands of wire harnesses and cable assemblies. The key lesson: the right interconnect solution depends entirely on application – one size never fits all.
Wire Harness or Cable Assembly: Match Solution to Environment
The terminology confusion is understandable – both are bundled wire interconnects. But the difference matters operationally and financially.
Wire harnesses offer lightweight, cost-effective organization for protected environments. Cable assemblies provide robust environmental protection for harsh conditions at a 30-50% cost premium.
Choose based on where the wiring routes, what threats it faces, and what reliability your application demands. Overspecification wastes money. Underspecification causes field failures.
For aerospace, medical, industrial, and other applications requiring proven interconnect reliability, IPC-A-620 certification ensures quality regardless of which solution you choose.
If you’re designing products with complex wire routing – whether internal harnesses or external cable assemblies – let’s discuss your application environment and requirements. At Anzer USA, our IPC-A-620 certified team builds both wire harnesses and cable assemblies to the same exacting standards.
Frequently Asked Questions About Wire Harness vs Cable Assembly
Q: Can you convert a wire harness to a cable assembly by adding outer sheathing?
A: Not easily in the field, but manufacturers can. Adding outer sheath after wires are bundled requires specialized extrusion equipment or heat-shrink sleeving. If you have existing wire harnesses that need environmental protection, options include: (1) Install the harness inside protective conduit or flex tubing (adds bulk but provides protection); (2) Apply over-braided sleeving with heat shrink (provides abrasion resistance but limited moisture protection); (3) Return to manufacturer to have outer jacket extruded or over-molded (most expensive but provides full cable assembly protection). Best practice: specify cable assembly initially if environmental protection is needed – retrofitting is always more expensive than building correctly from the start.
Q: Do cable assemblies always cost more than wire harnesses?
A: Yes, cable assemblies typically cost 30-50% more than equivalent wire harnesses due to additional materials (outer sheath, often specialty polymers) and manufacturing processes (extrusion, over-molding). However, the total system cost can favor cable assemblies in harsh environments. Wire harnesses in outdoor applications may require protective conduit, mounting hardware, and sealed junction boxes – adding installation costs that exceed the cable assembly premium. For example, a $200 cable assembly might be cheaper than a $140 wire harness + $80 worth of protective conduit and installation labor. Always compare total installed cost, not just component cost.
Q: Can you use wire harnesses outdoors if they’re inside sealed enclosures?
A: Yes, with conditions. If the enclosure provides complete environmental protection (sealed gaskets, rated IP67 or higher, no moisture ingress), wire harnesses work. However, be cautious: many “outdoor enclosures” aren’t perfectly sealed – condensation can form inside from temperature cycling, gaskets degrade over time, and installation errors compromise seals. For critical applications, we recommend cable assemblies even inside outdoor enclosures as defense-in-depth. For non-critical applications where failure is acceptable or easily repaired, wire harness with good enclosure is sufficient. Perform worst-case environmental analysis: if any possibility of moisture, UV, or chemical exposure exists, use cable assembly.
Q: What’s the difference between IPC-A-620 Class 2 and Class 3 for wire harnesses?
A: Class 2 allows minor cosmetic defects and has relaxed acceptance criteria. Class 3 requires zero defects and stricter specifications. Key differences: Crimps: Class 2 allows minor insulation nicks and accepts crimps within broader force ranges. Class 3 requires perfect insulation, zero nicks, and crimps within tight force ranges with 100% pull testing. Solder joints: Class 2 allows minor voids and incomplete wetting if functionality isn’t affected. Class 3 requires complete fillet, zero voids, full wetting. Wire stripping: Class 2 allows up to 3 nicked strands on wire with 7+ strands. Class 3 allows zero nicked strands. Marking/labeling: Class 2 allows minor label damage if readable. Class 3 requires perfect labels. Class 3 adds approximately 20-40% to manufacturing cost due to tighter tolerances, increased inspection time, and higher rejection rates. Aerospace and medical typically require Class 3.
Q: How long do wire harnesses and cable assemblies typically last?
A: Lifespan depends entirely on environment. Wire harness in protected enclosure: 15-25 years (limited by insulation aging, not environmental exposure). Wire harness exposed to harsh environment: 2-5 years (moisture ingress, UV degradation, abrasion damage). Cable assembly in harsh environment: 10-20 years (outer sheath protects against environmental factors). Cable assembly in protected enclosure: 15-25 years (same as wire harness – no advantage since protection isn’t needed). The key lesson: using wire harness in harsh environments reduces lifespan by 75-85% compared to cable assembly. For outdoor industrial equipment with 10-year design life, wire harness will fail before end-of-life, requiring field replacement. Cable assembly survives the full product lifetime. Cost over life: cable assembly’s 30-50% upfront premium is trivial compared to field replacement costs ($500-$5,000 per incident).
