A: A bed of nails fixture, also known as a nail bed fixture or pogo pin test fixture, is a specialized electronic test fixture used for testing printed circuit boards (PCBs) or electronic components.

It typically consists of a flat surface, often made of a non-conductive material such as plastic, with a grid of sharp pointed pins or nails protruding from it. These nails are usually spring-loaded and electrically connected to the test system. The purpose of the bed of nails fixture is to provide a reliable and repeatable electrical connection with multiple points on the PCB or component under test.

During testing, the PCB or component is placed onto the bed of nails fixture and pressed down, causing the sharp nails to pierce through the existing test points or contact pads on the PCB. The spring-loaded nature of the nails ensures a secure electrical connection, even in slight variations in the height or position of the test points.

Bed of nails fixtures are commonly used in the manufacturing and testing industry to quickly and accurately test PCBs for functionality, connectivity, and potential defects. The tester helps identify defects, faults, or issues in the device by applying electrical signals, monitoring responses, and verifying proper functioning. They are particularly useful for high-volume production environments where speed and efficiency are essential.

If you are considering outsourcing your testing, don’t hesitate to Contact Us.

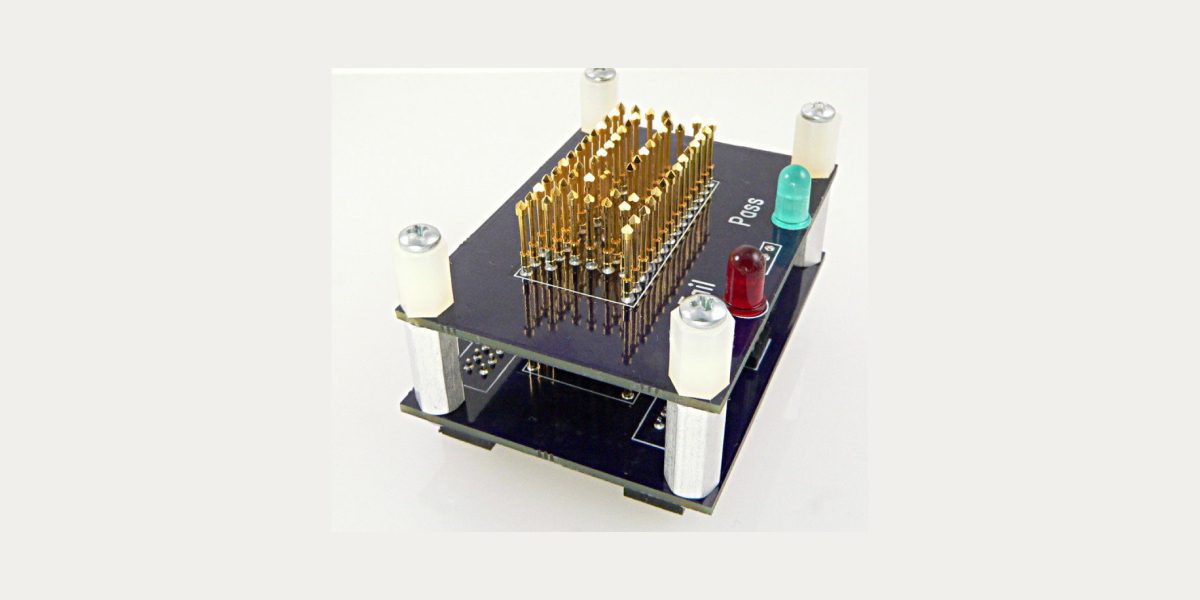

Bed of Nails Fixture
Example: Bed of Nails Fixture
