PCB component correct orientation of specific types on a printed circuit board (PCB) is crucial for the proper functioning and reliability of the circuit. Here are some types of PCB components that typically require correct orientation:

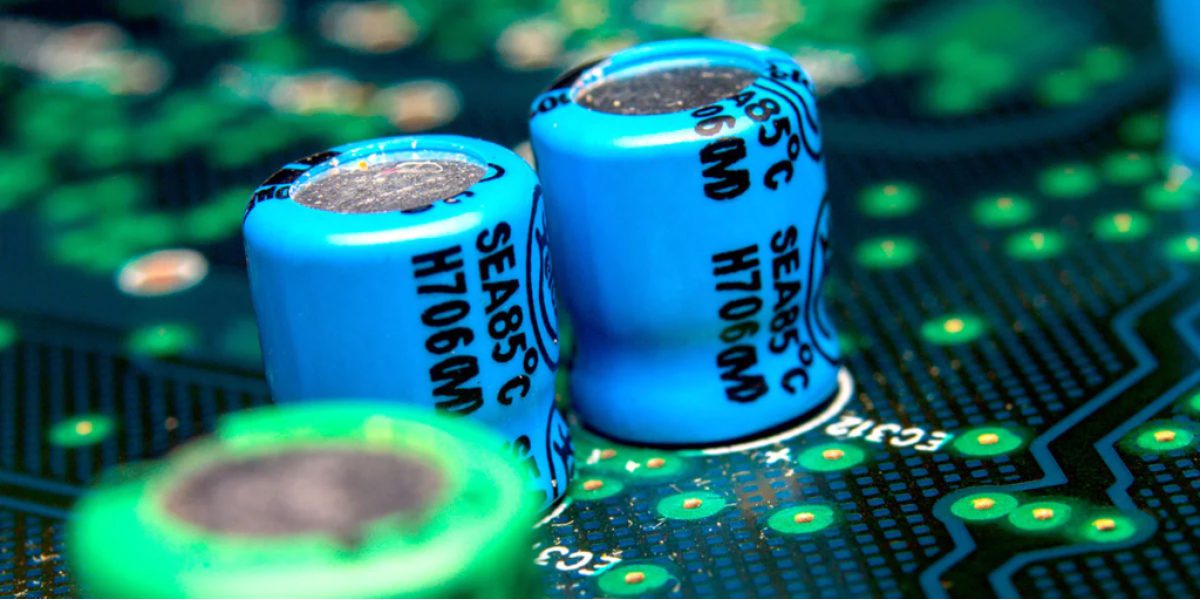

  1. Polarized Capacitors: Electrolytic and tantalum capacitors are polarized components, meaning they have a positive and a negative terminal. Placing them in the wrong orientation can lead to catastrophic failure, including leakage, explosion, or damage to the circuit. PCB component correct orientation can be crucial when using capacitors.
  2. Diodes: Diodes are also polarized components with an anode and a cathode. Placing them backward can prevent current flow in the desired direction and affect the circuit’s functionality.
  3. LEDs (Light Emitting Diodes): LEDs have a positive (anode) and a negative (cathode) lead. Installing them incorrectly will prevent them from emitting light or may cause damage.
  4. Transistors: Transistors, particularly bipolar junction transistors (BJTs) and some field-effect transistors (FETs), have specific pinouts that must be observed. Incorrect orientation can affect amplification or switching functions.
  5. ICs (Integrated Circuits): Many ICs have a notch or a dot to indicate pin one (1) or a specific orientation. PCB component correct orientation for integrated circuits is absolutely a must, this is why Automated Optical Inspection (AOI) equipment is used during the assembly process.
  6. Voltage Regulators: Voltage regulators are often polarized and must be installed with the correct input and output terminals connected appropriately.
  7. Connectors: Some connectors have specific orientations to ensure the proper mating and functionality of the connected components or cables.
  8. Crystal Oscillators: Crystal oscillators have an orientation requirement for their leads. Placing them backward can affect the circuit’s clock signal and timing accuracy.
    ust
  9. Electromechanical Components: Components like relays, transformers, and switches may have specific pin orientations that must be observed for proper operation.
  10. Sensors: Various sensors, such as accelerometers, gyroscopes, and temperature sensors, may have polarity or orientation requirements that should be followed for accurate readings.
  11. Fuses and Resettable PTCs: Fuses and positive temperature coefficient (PTC) devices have polarity and orientation requirements. Installing them incorrectly can lead to circuit protection failure.
  12. Polarized Connectors: Some connectors themselves may have polarity, and reversing them can lead to incorrect connections.

It’s essential to consult the datasheets or documentation for each component to understand their pinout, orientation, and any specific handling requirements. Failing to observe the PCB component correct orientation can lead to malfunction, damage to the components, or even safety hazards in some cases. Double-checking component orientation during PCB assembly is a standard practice in electronics manufacturing to ensure the circuit’s reliability and functionality.
